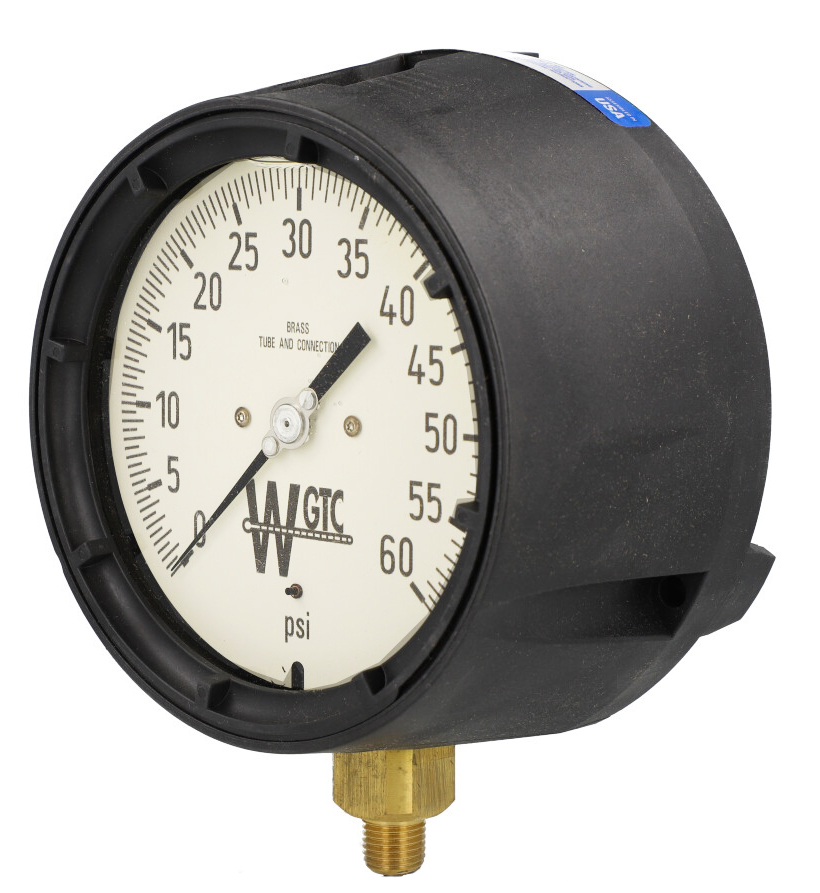

The HY14-P Glycerin Filled Gauge features a turret-style thermoplastic case and a 4 ½” dial. It is designed for durability with wetted parts made of copper alloy and a removable bezel for maintenance. The gauge is filled with glycerin to dampen vibrations and extend its service life, making it suitable for demanding process applications. It is brought to you by ESP and assembled in various global locations.
Features & Benefits
- 4 1/2”dial size
- Phosphor bronze bourdon tube and brass socket
- Heavy duty brass movement
- Solid front fiberglass reinforced thermoplastic case
- Available dry or factory glycerin filled
- Liquid fillable with optional 1-piece kit
- 1/2% full scale accuracy per ASME B40.1 Grade 2A
- Balanced micrometer adjustable pointer
- 1/4”NPT, bottom connection
- Acrylic lens
- MODEL HA14-P
- 52
- STANDARD RANGES
- RANGE CODE FIGURES GRADUATIONS
- 30”/0 VAC VC 5” HG 0.2” HG
- 30” -0-15 CA 10”HG/5 PSI 1”HG/.5 PSI
- 30” -0-30 CB 10”HG/5 PSI 1”HG/.5 PSI
- 30” -0-60 CC 10”HG/10 PSI 2”HG/1 PSI
- 30” -0-100 CD 10”HG/20 PSI 2”HG/1 PSI
- 0-15 PSI PC 3 PSI 0.2 PSI
- 0-30 PSI PD 5 PSI 0.2 PSI
- 0-60 PSI PE 5 PSI 0.5 PSI
- 0-100 PSI PF 10 PSI 1 PSI
- 0-160 PSI PG 20 PSI 1 PSI
- 0-200 PSI PH 20 PSI 2 PSI
- 0-300 PSI PJ 50 PSI 2 PSI
- 0-400 PSI PK 50 PSI 2 PSI
- 0-600 PSI PM 50 PSI 5 PSI
- 0-1000 PSI PP 100 PSI 10 PSI
- HOW TO ORDER – PLEASE SPECIFY THE FOLLOWING:
- MODEL # RANGE CONNECTION SIZE CONNECTION LOCATION
- HA14-P (dry case)
- 2 digit codefrom table 4 = 1/4” NPT L = Lower
- HY14-P (filled case)
- Weksler Glass Thermometer Corporation
- 3295 Cobb International Blvd. • Kennesaw, GA 30152
- Telephone: 888-650-6923 • Fax: 770-429-0795 E-mail:
- Sales@WekslerGlass.com • Website: www.WekslerGlass.com
- HY14-P (filled case) | 2 digit codefrom table | 4 = 1/4” NPT | L = Lower
Certifications & Approvals
- Liquid fillable with optional 1-piece kit
