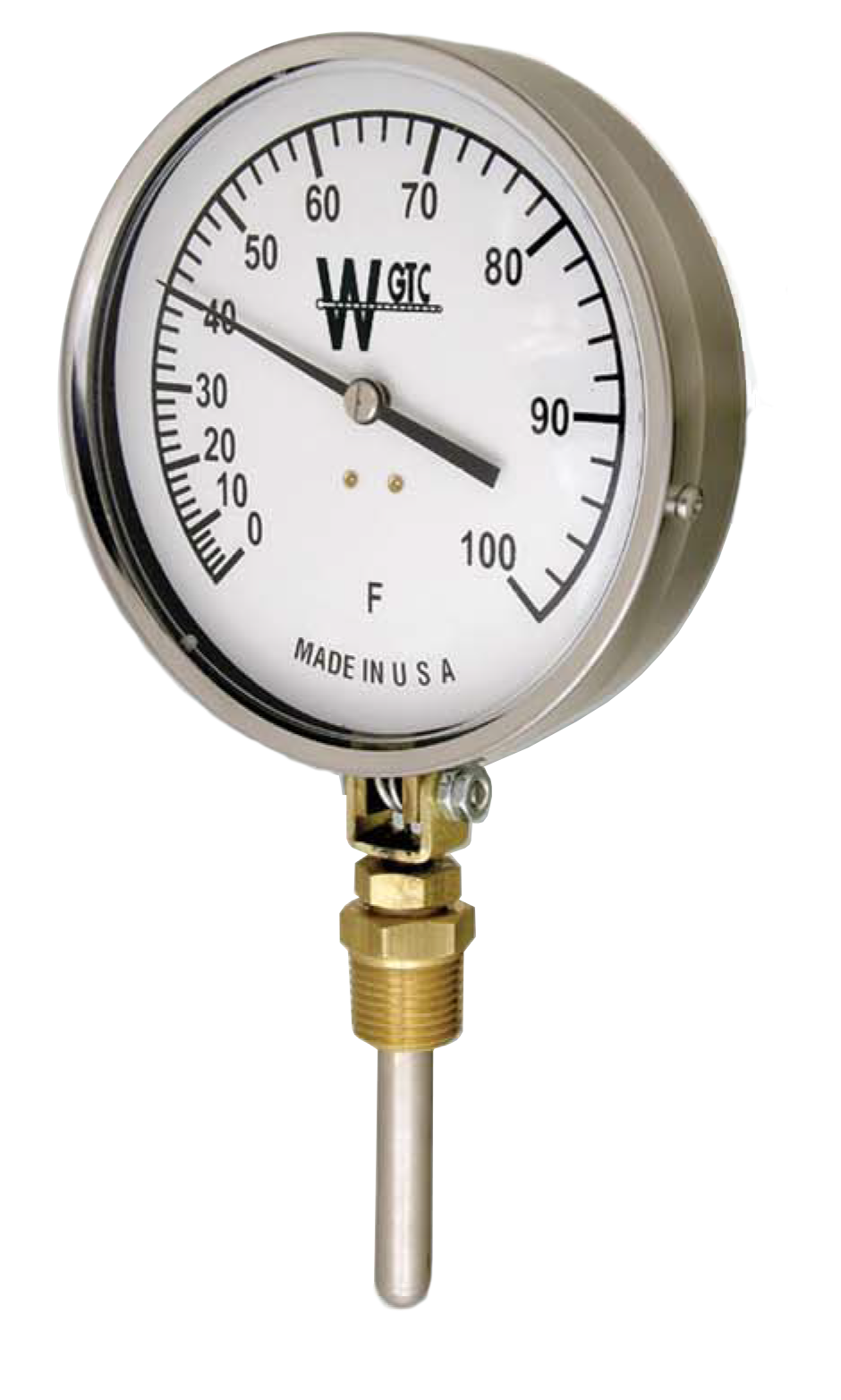

The VA45S Vapor Dial Thermometer is a high-quality instrument designed for accurate temperature measurement in various industrial applications. It features an adjustable angle mount and a stainless steel case for durability. Additional contact options include a quote request form and a direct phone line to the manufacturer. Weksler Glass is a well-established company providing these thermometers from its Kennesaw, GA location, with global assembly operations.
Features & Benefits
- 4 1/2” dial size
- Stainless steel case and ring
- Acrylic lens
- Aluminum dial, white finish, black markings
- Progressive graduations offer ideal reading in
- the upper two thirds of the range
- For standard ranges see page 23
- Adjustable pointer
- Precision geared brass movement
- + or -1 scale division accuracy
- Brass thermowell, 1/2” NPT standard. 2” “U” MODEL
- VA45S
- dimension below thread. Additional sizes, threads
- and materials available. See page 23.
- STANDARD RANGES
- CODE FAHRENHEIT
- 01 -40/65F
- 02 -20/120F
- 03 20/220F
- 04 30/300F
- CODE CELSUIS
- 05 -40/20C
- 06 0/100C
- CODE DUAL SCALE F & C
- 07 -40/65F & -40/20C
- 08 -20/120F & -30/50C
- 09 20/220F & 0/105C
- 10 30/300F & 0/150C
- HOW TO ORDER – PLEASE SPECIFY THE FOLLOWING:
- MODEL # RANGE IMMERSION THERMOWELL
- CODE LENGTH CATALOG NO.
- VA45S 2 digit code 2= 2.25” See Page
- from table 4= 4.25” 23
- 21
- Weksler Glass Thermometer Corporation
- 3295 Cobb International Blvd. • Kennesaw, GA 30152
- Telephone: 888-650-6923 • Fax: 770-429-0795 E-mail:
- Sales@WekslerGlass.com • Website: www.WekslerGlass.com
- 05 | CELSUIS
- 40/20C
- CODE | IMMERSION
- LENGTH | THERMOWELL
- CATALOG NO.
- from table | 2= 2.25”
- 4= 4.25” | See Page
- 23
