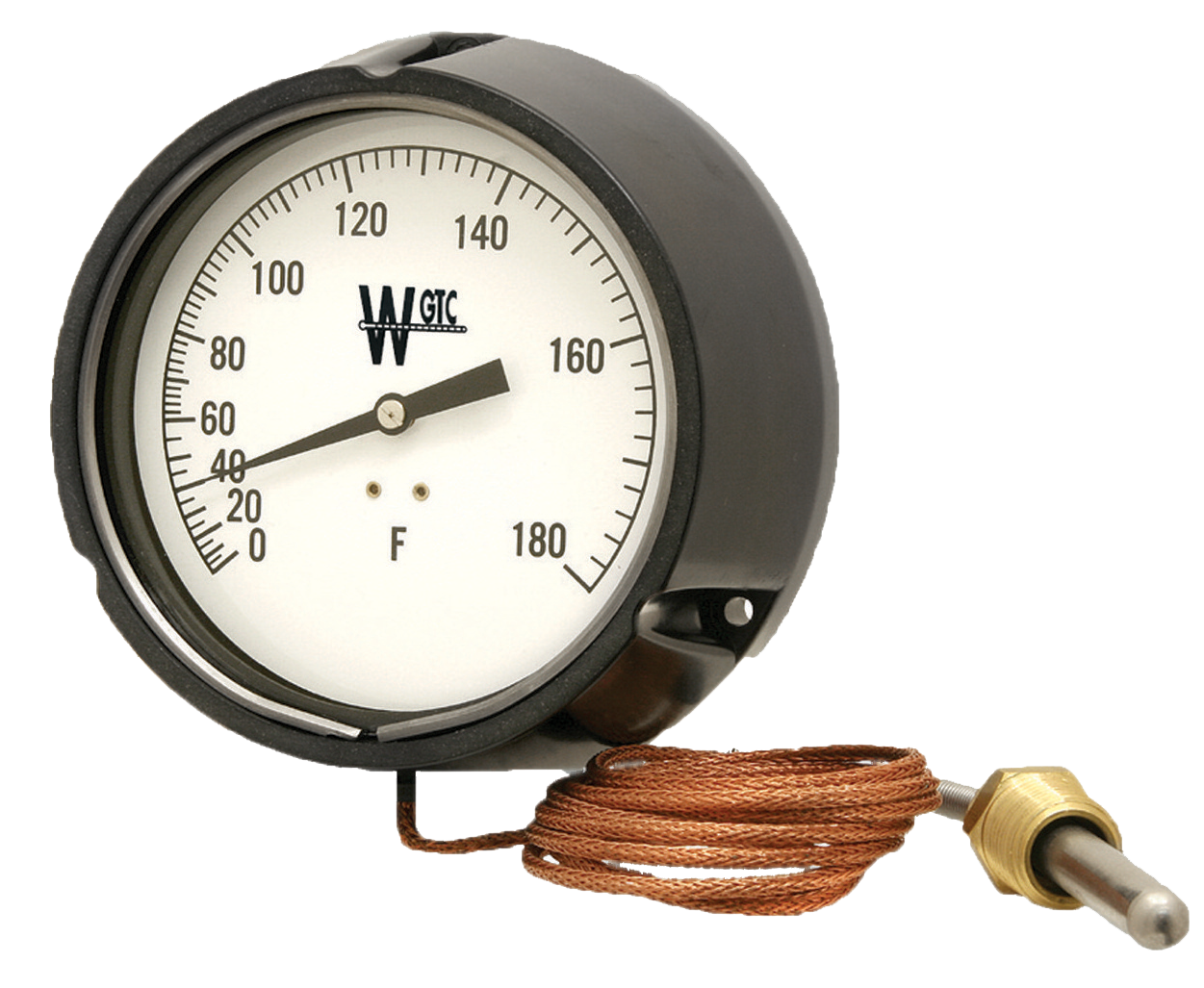

The VR45P Remote Mounted Vapor Actuated Dial Thermometer is designed for remote temperature monitoring. It features a glass-reinforced plastic case and a variety of capillary lengths and bulb styles to suit different applications. The dial is 4.5 inches (114mm) in diameter, and the instrument offers an accuracy of +/-1 scale division. NIST traceable certification is available as an option.
Features & Benefits
- 4 1/2” dial size
- Glass reinforced Phenolic case
- Stainless steel snap ring
- Glass lens
- Aluminum dial, white finish, black markings
- Progressive graduations offer ideal reading in
- the upper two thirds of the range
- For standard ranges see page 23
- Adjustable pointer
- Precision geared brass movement
- + or 1 scale division accuracy
- 5ft. bronze braided capillary tubing standard.
- Additional tubing lengths and materials available
- MODEL
- Brass thermowell, 1/2” NPT standard. 2” “U”
- VR45P
- dimension below thread. Additional sizes, threads
- and materials available. See page 23.
- 22
- STANDARD RANGES
- CODE FAHRENHEIT
- 01 -40/65F
- 02 -20/120F
- 03 20/220F
- 04 30/300F
- CODE CELSUIS
- 05 -40/20C
- 06 0/100C
- CODE DUAL SCALE F & C
- 07 -40/65F & -40/20C
- 08 -20/120F & -30/50C
- 09 20/220F & 0/105C
- 10 30/300F & 0/150C
- HOW TO ORDER – PLEASE SPECIFY THE FOLLOWING:
- MODEL # RANGE TUBING IMMERSION THERMOWELL
- CODE LENGTH LENGTH CATALOG NO.
- VR45P 2 digit code 05= 5 FT. 2= 2.25” See Page
- from table 10= 10 FT. 4= 4.25” 23
- ETC.
- Weksler Glass Thermometer Corporation
- 3295 Cobb International Blvd. • Kennesaw, GA 30152
- Telephone: 888-650-6923 • Fax: 770-429-0795 E-mail:
- Sales@WekslerGlass.com • Website: www.WekslerGlass.com
- 05
- 06 | CELSUIS
- 40/20C
- 0/100C
- CODE | TUBING
- LENGTH | IMMERSION
- LENGTH | THERMOWELL
- CATALOG NO.
- from table | 05= 5 FT.
- 10= 10 FT.
- ETC. | 2= 2.25”
- 4= 4.25” | See Page
- 23
